低强度脉冲超声调控治疗疼痛性膝骨关节炎的临床研究

doi:10.3969/j.issn.1006-5725.2023.21.015

Abstract

Abstract:

Objective To explore the clinical efficacy and safety of low-intensity pulse ultrasound in the treatment of medial painful knee osteoarthritis. Methods A total of 10 patients with medial painful knee osteoarthritis were collected and treated with low-intensity pulsed ultrasound. VAS visual analogue scores， WOMAC and Lysholm knee osteoarthritis rehabilitation scale scores were performed before treatment， immediately after treatment， 1 week， 2 weeks and 4 weeks after treatment. The efficacy and safety were compared before and after treatment. The ultrasound images before and after treatment were compared to verify its safety. Result VAS， WOMAC and Lysholm scores were statistically significant before and immediately after treatment， 1 week and 2 weeks after treatment （P　<　0.05）， but there was no statistically significant difference between them and 4 weeks after treatment （P > 0.05）. VAS decreased significantly before treatment， immediately after treatment， 1 week after treatment and 2 weeks after treatment， and were （5.26　±　1.12），（2.76　±　0.92），（2.74　±　1.26），（3.42　±　0.93）， respectively. The secondary outcome indicators of WOMAC and Lysholm were significantly changed before treatment， immediately after treatment， 1 week after treatment and 2 weeks after treatment. They were （24.03　±　4.43） and （66.93　±　14.14），（12.75　±　1.63） and （79.86　±　10.82），（12.76　±　1.82） and （81.93　±　7.67），（15.17　±　2.73） and （77.08　±　9.73）， respectively. No significant abnormality was found in the ultrasound images before and after treatment. Conclusion low-intensity pulsed ultrasound safely and effectively regulates the peripheral knee nerve in the treatment of painful knee osteoarthritis， providing a new idea for the intervention and treatment of clinical knee osteoarthritis.

Key words: low intensity pulsed ultrasound, knee osteoarthritis, genicular nerve

CLC Number:

R454.4

Shanshan HU,Xiao LIU,Hancai LUO,Yayun WU,Xiaoman WU,Lili NIU,Min PAN. Clinical study of low intensity pulsed ultrasound in the treatment of painful knee osteoarthritis[J]. The Journal of Practical Medicine, 2023, 39(21): 2783-2789.

Figures/Tables 5

Tab.1

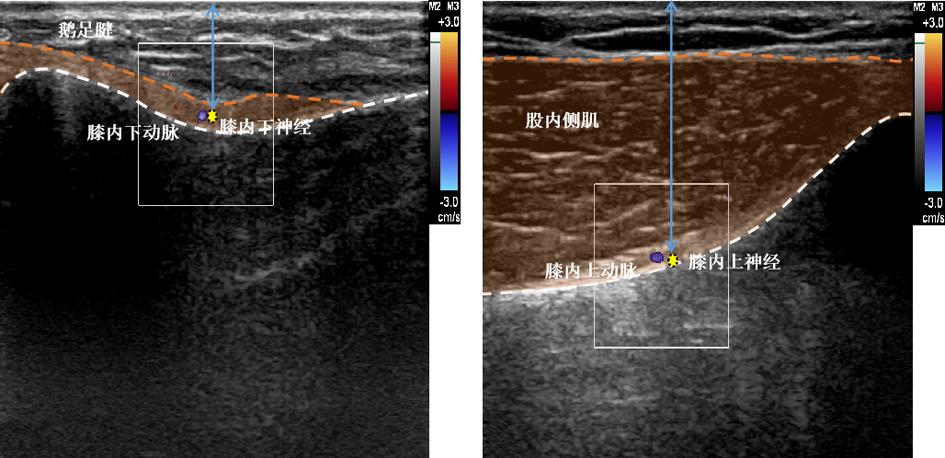

Fig.1

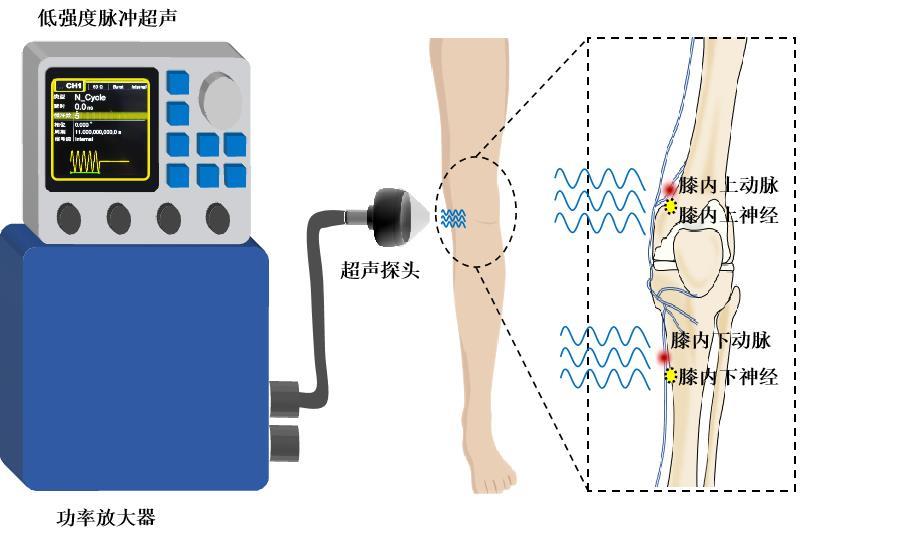

Fig. 2

Tab.2

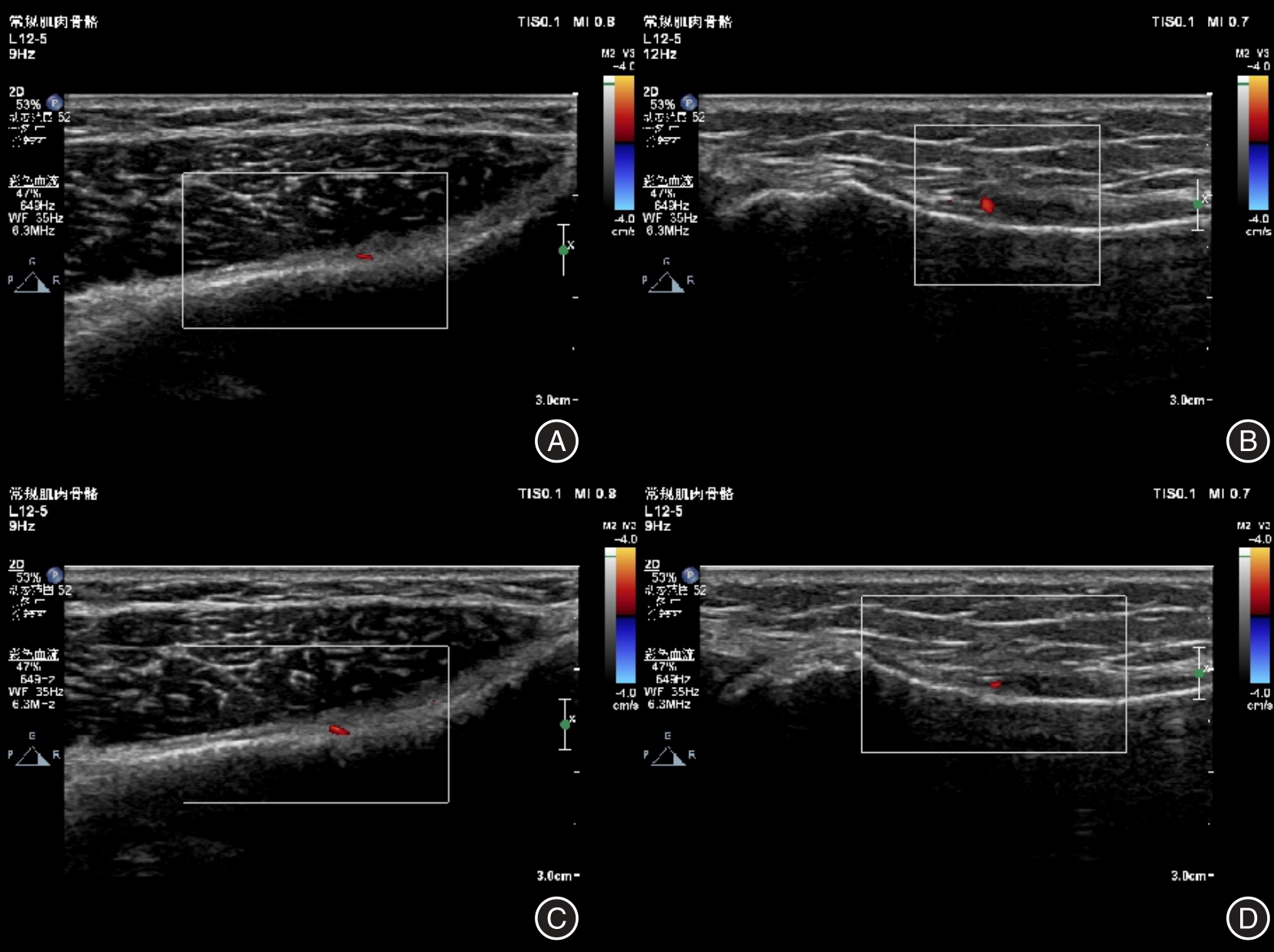

Fig.3

References 32

1	SPITAELS D， MAMOURIS P， VAES B， et al. Epidemiology of knee osteoarthritis in general practice： a registry-based study［J］. BMJ Open，2020，10（1）：e31734.
2	廖德发. 我国骨性关节炎流行病学调查现状［J］. 微创医学，2017，12（4）：521-524.
3	刘朝晖，马剑雄，张顺，等. 膝骨关节炎的现状及治疗方法的研究进展［J］. 中华骨与关节外科杂志，2020，13（8）：688-693.
4	LOUISE J， GENEEN R A M C. Physical activity and exercise for chronic pain in adults： an overview of Cochrane Reviews ［J］. Cochrane Database Syst Rev，2017，4（2017）：1-74.
5	郑洁，袁普卫，康武林，等. 骨性关节炎慢性疼痛的神经机制研究进展［J］. 中国疼痛医学杂志，2020，26（6）：447-450.
6	陶树青，杨山辉. 膝关节骨性关节炎的非手术治疗进展［J］. 东南大学学报（医学版），2017，4（36）：677-680.
7	张栋林，吴超超，季强，等. 近5年注射治疗膝关节骨性关节炎的研究进展［J］. 辽宁中医杂志，2020，47（3）：206-209.
8	毛远舟，贾海滨，刘冬，等. 菱形阻滞与膝关节周围神经阻滞术以及两者联合治疗膝关节骨性关节炎临床疗效对比［J］. 实用医学杂志，2021，37（10）：1317-1321.
9	UEMATSU H， OSAKO S， HAKATA S， et al. A Double-blind， placebo-controlled study of ultrasound-guided pulsed radiofrequency treatment of the saphenous nerve for refractory osteoarthritis-associated knee pain［J］. Pain Physician，2021，24（6）：E761-E769.
10	SHANAHAN E M， ROBINSON L， LYNE S， et al. Genicular nerve block for pain management in patients with knee osteoarthritis： A randomized placebo-controlled trial［J］. Arthritis Rheumatol，2023，75（2）：201-209.
11	陈平，谭利琴，吴春根. 隐神经射频与关节腔注射曲安奈德治疗膝骨性关节炎的效果比较［J］. 实用医学杂志，2023，39（13）：1652-1656.
12	陈付艳，周鑫，吴帮启. 射频针刀联合臭氧注射治疗膝骨性关节炎的临床疗效［J］. 实用医学杂志，2022，38（3）：335-339.
13	李英伟，常慧贤，王乾，等. 低强度脉冲超声在神经调控中的应用进展［J］. 中国医学前沿杂志，2022，14（12）：57-62.
14	樊子娟，王桂杉，李川，等. 《中国骨关节炎诊疗指南（2021年版）》解读和评价［J］. 中国循证医学杂志，2022，22（6）：621-627.
15	GALLAGHER E J， LIEBMAN M， BIJUR P E. Prospective validation of clinically important changes in pain severity measured on a visual analog scale［J］. Ann Emerg Med，2001，38（6）：633-638.
16	BARBER-WESTIN S D， NOYES F R. 43 - rating of athletic and daily functional activities： knee-specific scales and global outcome instruments［M］ Elsevier Inc，2017：1211-1221.
17	ELSAMAN A M， MAATY A， HAMED A. Genicular nerve block in rheumatoid arthritis： a randomized clinical trial［J］. Clinical rheumatology，2021，40（11）：4501-4509.
18	XIA Y， LI J， WANG D， et al. Potential Application of Low-Intensity Focused Ultrasound in Rapidly Relieving Delayed-Onset Muscle Soreness Induced by High-Intensity Exercise［J］. J Ultrasound Med，2022，41（9）：2227-2235.
19	FELTHAM T， PAUDEL S， LOBAO M， et al. Low-intensity pulsed ultrasound suppresses synovial macrophage infiltration and inflammation in injured knees in rats［J］. Ultrasound Med Biol，2021，47（4）：1045-1053.
20	LV Y， NAN P， CHEN G， et al. In vivo repair of rat transected sciatic nerve by low-intensity pulsed ultrasound and induced pluripotent stem cells-derived neural crest stem cells［J］. Biotechnol Lett，2015，37（12）：2497-2506.
21	梁传财，邱波. 低强度脉冲超声在骨关节炎研究中的应用进展［J］. 生物技术进展，2022，12（2）：243-247.
22	廖晴，李保建，李洋，等. 低强度脉冲超声介导骨髓间充质干细胞促进膝骨关节炎软骨修复［J］. 中国组织工程研究，2021，25（31）：4950-4955.
23	郭润，张波，赵刚. 低强度脉冲超声治疗平滑肌疾病及其作用机制研究进展［J］. 中国医学影像技术，2022，38（04）：615-618.
24	郑海荣，牛丽丽，王丛知，等. 超声力学效应在医学诊疗中的创新与转化［J］. 生物医学转化，2020，1（1）：8-17.
25	FASANO A， LLINAS M， MUNHOZ R P， et al. MRI-guided focused ultrasound thalamotomy in non-ET tremor syndromes［J］. Neurology，2017，89（8）：771-775.
26	BRINKER S T， PREISWERK F， WHITE P J， et al. Focused ultrasound platform for investigating therapeutic neuromodulation across the human hippocampus［J］. Ultrasound Med Biol，2020，46（5）：1270-1274.
27	邹俊杰，林争荣，牛丽丽，等. 聚焦超声在癫痫等中枢神经系统疾病治疗中的应用及机制［J］. 中华神经医学杂志，2018，17（2）：212-216.
28	ABE K， YAMAGUCHI T， HORI H， et al. Magnetic resonance-guided focused ultrasound for mesial temporal lobe epilepsy： a case report［J］. BMC Neurol，2020，20（1）：160.
29	XIA B， CHEN G， ZOU Y， et al. Low‐intensity pulsed ultrasound combination with induced pluripotent stem cells‐derived neural crest stem cells and growth differentiation factor 5 promotes sciatic nerve regeneration and functional recovery［J］. J Tissue Eng Regen Med，2019，13（4）：625-636.
30	BILIR-YILDIZ B， SUNAY F B， YILMAZ H F， et al. Low-intensity low-frequency pulsed ultrasound ameliorates sciatic nerve dysfunction in a rat model of cisplatin-induced peripheral neuropathy［J］. Sci Rep，2022，12（1）：8125.
31	SAWITZKE A D， JACKSON C G， CARLSON K， et al. Effect of Pulsed Low-Intensity Ultrasonography on Symptom Relief and Tibiofemoral Articular Cartilage Thickness Among Veterans Affairs Enrollees With Knee Osteoarthritis： A Randomized Clinical Trial［J］. JAMA Network Open，2022，5（3）：e220632.
32	PEREZ-NERI I I， GONZALEZ-AGUILAR A A， SANDOVAL H H， et al. Therapeutic potential of ultrasound neuromodulation in decreasing neuropathic pain： clinical and experimental evidence［J］. Curr Neuropharmacol，2021，19（3）：334-348.

组别	例数	年龄（岁）	身高（m）	体重（kg）	BMI（kg/m²）	疼痛持续时间（月）
A组	15	65.12 ± 10.34	1.65 ± 0.076	63.04 ± 8.10	23.20 ± 2.15	2.13 ± 0.72
B组	10	62.26 ± 11.92	1.72 ± 0.08	67.03 ± 12.96	23.63 ± 3.26	2.14 ± 0.93

项目	组别	例数	治疗前	治疗后即刻	治疗后1周	治疗后2周	治疗后4周
VAS	A组	15	5.26 ± 1.12	2.76 ± 0.92^*	2.74 ± 1.26^#	3.42 ± 0.93^&	4.05 ± 0.76
	B组	10	5.54 ± 1.28	4.64 ± 1.53	5.23 ± 1.17	4.76 ± 1.34	5.33 ± 1.04
Lysholm	A组	15	66.93 ± 14.14	79.86 ± 10.82^*	81.93 ± 7.67^#	77.08 ± 9.73^&	65.36 ± 22.10
	B组	10	67.83 ± 10.05	66.44 ± 13.67	70.61 ± 15.96	70.92 ± 8.96	68.74 ± 11.31
WOMAC疼痛	A组	15	8.04 ± 1.87	2.73 ± 1.15^*	2.94 ± 0.48^#	3.47 ± 0.74^&	6.67 ± 1.34
	B组	10	7.43 ± 1.96	5.62 ± 1.40	5.72 ± 1.67	6.32 ± 2.17	6.58 ± 1.23
WOMAC僵硬	A组	15	1.93 ± 0.48	1.00 ± 0.32^*	0.60 ± 0.24^#	1.26 ± 0.33	1.68 ± 0.34
	B组	10	1.86 ± 0.57	1.60 ± 0.47	1.85 ± 0.30	2.17 ± 0.53	1.92 ± 0.47
WOMAC日常活动	A组	15	17.24 ± 7.03	9.21 ± 3.92^*	8.91 ± 3.09^#	10.46 ± 2.82^&	15.61 ± 5.86
	B组	10	16.78 ± 6.45	14.62 ± 5.34	15.53 ± 6.08	15.45 ± 5.67	15.62 ± 5.66
WOMAC总分	A组	15	24.03 ± 4.43	12.75 ± 1.63^*	12.76 ± 1.82^#	15.17 ± 2.73^&	22.41 ± 4.47
	B组	10	23.72 ± 3.69	20.48 ± 2.62	20.91 ± 2.95	21.35 ± 3.06	21.62 ± 2.96
