The Journal of Practical Medicine ›› 2025, Vol. 41 ›› Issue (6): 896-903.doi: 10.3969/j.issn.1006-5725.2025.06.019
• Medical Examination and Clinical Diagnosis • Previous Articles
Minsui CAI,Qi CUI,Sujun DING,Xuejun. NI()
Received:
2024-11-19
Online:
2025-03-25
Published:
2025-03-31
Contact:
Xuejun. NI
E-mail:XuejunNixuejunni@163.com
CLC Number:
Minsui CAI,Qi CUI,Sujun DING,Xuejun. NI. Application value study of cervical shear wave elasticity imaging combined with cervical length and anterior cervical angle in assessing cervical function and predicting spontaneous preterm birth[J]. The Journal of Practical Medicine, 2025, 41(6): 896-903.
Tab.1
General information of the two groups of"
项目 | 足月组(n = 723) | 早产组(n = 63) | Z/t/χ2值 | P值 |
---|---|---|---|---|
孕妇年龄[M(P25,P75 )]/岁 | 32(21,43) | 32(22,40) | 1.83 | 0.41 |
孕妇年龄≤ 35岁 | 670(92.7) | 57(90.3) | 0.31 | 0.74 |
孕妇年龄> 35岁 | 53(7.3) | 6(9.7) | 1.88 | 0.36 |
接受超声检查的时间 | ||||
妊娠龄19 ~ 23+6周 | 99(13.7) | 9(14.2) | 0.32 | 0.14 |
妊娠龄24 ~ 27+6周 | 562(77.7) | 47(74.6) | 0.31 | 0.58 |
妊娠龄28 ~ 33+6周 | 48(6.7) | 5(7.9) | 0.58 | 0.17 |
妊娠龄34 ~ 36+6周 | 14(1.9) | 2(3.2) | 0.45 | 0.36 |
初产妇 | 616(85.2) | 56(88.9) | 0.12 | 0.74 |
经产妇 | 107(14.8) | 7(11.1) | 0.22 | 0.71 |
流产史 | 129(17.8) | 15(23.8) | 1.79 | 0.02 |
早产史 | 5(0.7) | 23(36.5) | 121.18 | < 0.001 |
Tab.2
Ultrasound examination results of the two groups of pregnant women"
项目 | 足月组(n = 723) | 早产组(n = 63) | t值 | P值 |
---|---|---|---|---|
CL/mm | 29.71 ± 10.85 | 25.42 ± 9.41 | 5.32 | < 0.001 |
ACA/° | 99.42 ± 14 | 120.86 ± 10 | -13.87 | < 0.001 |
SWE/kPa | ||||
AE | 9.91 ± 2.14 | 6.47 ± 2.03 | 13.47 | < 0.001 |
AI | 18.62 ± 6.97 | 10.98 ± 6.21 | 10.14 | < 0.001 |
PI | 21.09 ± 5.04 | 11.32 ± 2.61 | 17.94 | < 0.001 |
PE | 13.24 ± 5.04 | 8.16 ± 4.98 | 8.42 | < 0.001 |

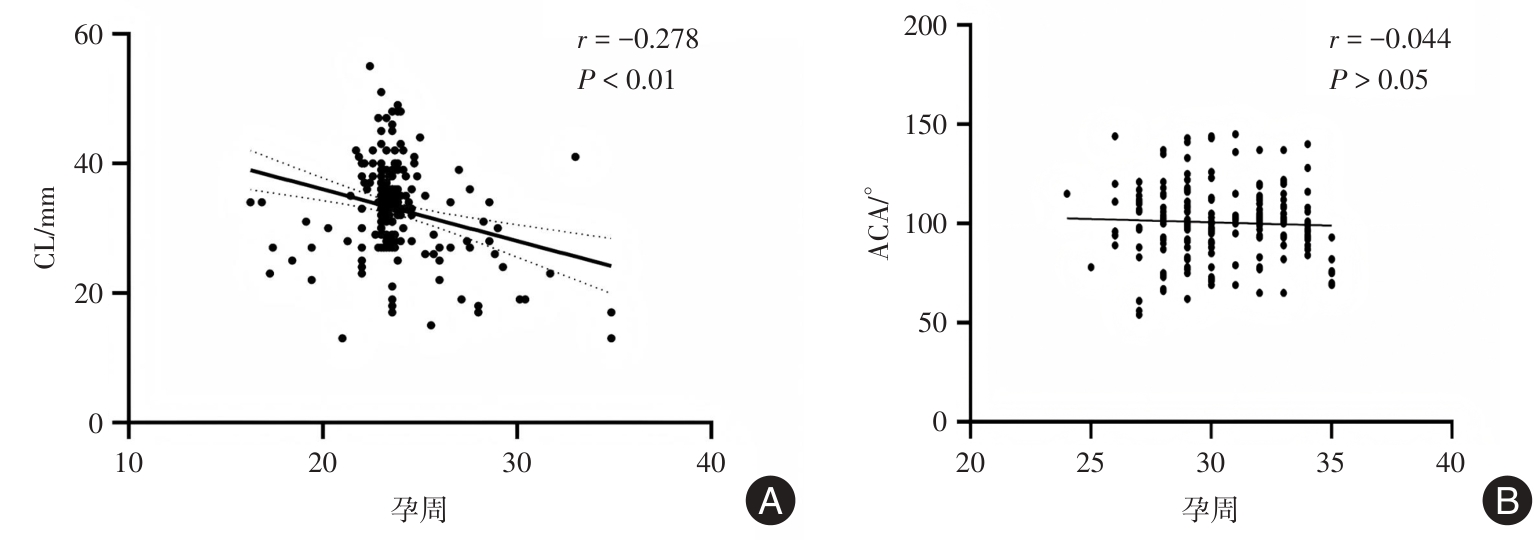

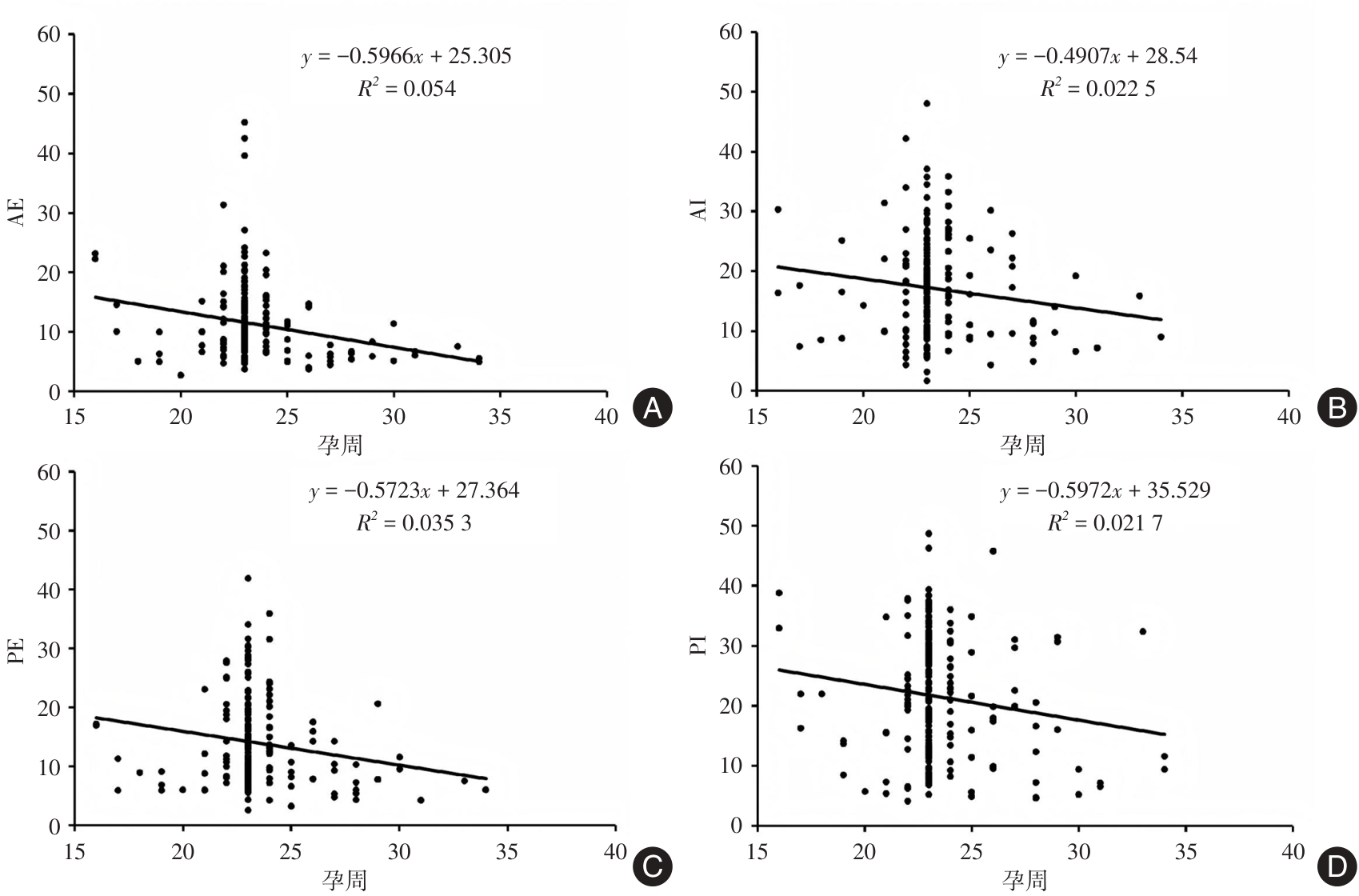

Tab.3
Relationship between CL, ACA, SWE and gestational age"
项目 | 19 ~ 23+6周 | 24 ~ 27+6周 | 28 ~ 33+6周 | 34 ~ 36+6周 | t值 | P值 |
---|---|---|---|---|---|---|
样本量 | 99 | 562 | 48 | 14 | ||
CL/mm | 30.00 ± 10.22 | 29.91 ± 11.21 | 27.80 ± 9.42 | 27.20 ± 8.55 | 13.894 | 0.003 |
ACA/° | 109.10 ± 5.23 | 100.16 ± 13.36 | 104.32 ± 10.17 | 93.16 ± 10.84 | 6.52 | 0.089 |
SWE/kPa | ||||||
AE | 10.08 ± 3.53 | 9.85 ± 2.12 | 5.36 ± 0.56 | 4.4 ± 0.12 | 17.29 | < 0.001 |
AI | 16.94 ± 5.22 | 18.67 ± 6.86 | 10.51 ± 2.09 | 9.04 ± 0.09 | 14.96 | 0.002 |
PI | 21.28 ± 6.67 | 20.99 ± 4.64 | 10.80 ± 3.02 | 10.59 ± 0.14 | 15.87 | 0.026 |
PE | 13.13 ± 4.75 | 13.01 ± 5.22 | 7.39 ± 1.88 | 5.97 ± 0.11 | 13.69 | 0.001 |
Tab.4
One-way ANOVA of ultrasound results"
危险因素 | 是否早产 | Z值 | P值 | |
---|---|---|---|---|
否 | 是 | |||
CL | 34.05(30.05,38.10) | 21.50(17.25,24.75) | -6.618 | < 0.001 |
ACA | 95.21(76.13,118.46) | 132.36(118.97,142.02) | -4.445 | < 0.001 |
AI SWE | 16.75(10.94,22.01) | 10.12(8.82,20.40) | -2.299 | 0.22 |
PI SWE | 21.28(13.78,29.57) | 8.59(13.20,19.53) | -3.142 | 0.02 |
AE SWE | 10.05(6.94,15.03) | 5.39(4.45,8.18) | -3.810 | < 0.001 |
PE SWE | 12.71(8.37,19.47) | 7.01(5.92,12.84) | -3.358 | 0.01 |
Tab.6
Multivariate logistic regression analysis of factors affecting premature birth"
自变量 | b | Sb | Wald χ2 | P值 | OR | 95%CI | |
---|---|---|---|---|---|---|---|
下限 | 上限 | ||||||
ACA ≥ 115.06° | 1.010 | 0.396 | 4.864 | 0.009 | 2.735 | 1.126 | 6.643 |
PI ≤ 20.29 kPa | 1.066 | 0.462 | 5.339 | 0.010 | 2.904 | 1.177 | 7.165 |
AE ≤ 5.78 kPa | 1.046 | 0.455 | 5.313 | 0.010 | 2.848 | 1.171 | 6.926 |
PE ≤ 8.15 kPa | 1.058 | 0.461 | 5.283 | 0.011 | 2.881 | 1.170 | 7.095 |
CL ≤ 25.0 mm | 1.038 | 0.488 | 4.537 | 0.022 | 2.823 | 1.087 | 7.331 |

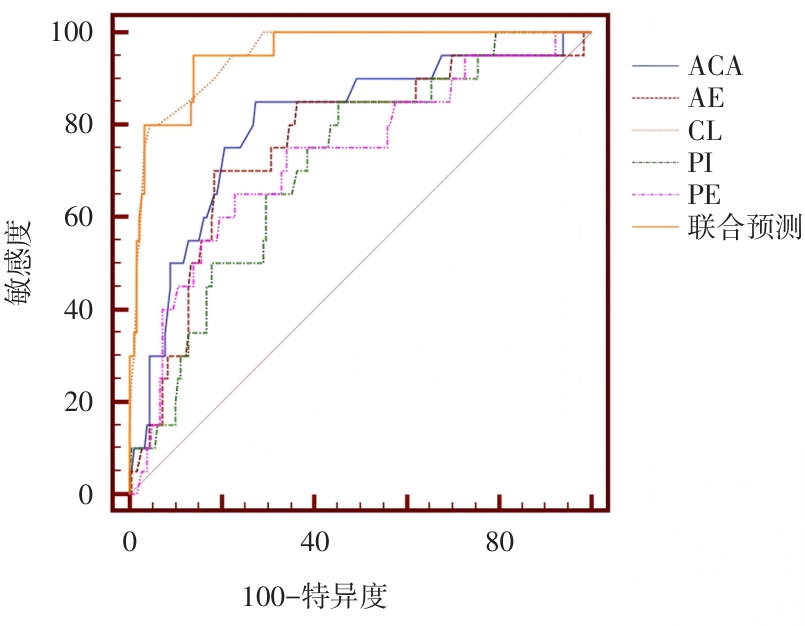

Tab.7
ROC curve analysis results"
参数 | AUC | 截断值 | 灵敏度/% | 特异度/% | P值 | 95%CI |
---|---|---|---|---|---|---|
ACA | 0.801 | 115.06° | 85.0 | 73.1 | 0.025 | 0.739 ~ 0.854 |
PI | 0.714 | 20.29 kPa | 85.0 | 55.0 | < 0.01 | 0.646 ~ 0.776 |
AE | 0.760 | 5.78 kPa | 70.0 | 81.7 | < 0.01 | 0.695 ~ 0.817 |
PE | 0.729 | 8.15 kPa | 65.0 | 77.2 | < 0.01 | 0.662 ~ 0.789 |
CL | 0.950 | 25.0 mm | 80.0 | 95.1 | < 0.01 | 0.911 ~ 0.976 |
联合预测 | 0.952 | / | 95.0 | 86.0 | < 0.01 | 0.913 ~ 0.977 |
1 | 中华医学会妇产科学分会产科学组. 早产的临床诊断与治疗指南(2014)[J]. 中国实用乡村医生杂志, 2015(12):3. |
2 |
TSIKOURAS P, BOTHOU A, GEREDE A, et al. Premature Birth, Management, Complication [M]. Global Women′s Health, 2021. doi:10.5772/intechopen.98324
doi: 10.5772/intechopen.98324 |
3 | 张文, 丁依玲. 子宫颈机能不全的可能病因 [J]. 中国实用妇科与产科杂志, 2023, 39(8): 780-783. |
4 | 孙丽洲, 杨娜娜. 子宫颈机能不全的热点问题与诊治策略 [J]. 中国实用妇科与产科杂志, 2023, 39(8): 769-771. |
5 | 孙笑, 时春艳. 子宫颈机能不全和短子宫颈的孕期超声检测和监管 [J]. 中国实用妇科与产科杂志, 2023, 39(8): 776-779. |
6 | 潘江皓, 孙健铭, 宋家明, 等. 急性下肢深静脉血栓形成患者行CDT联合ART治疗前后监测超声弹性成像参数变化对疗效的评估价值 [J]. 实用医学杂志, 2023, 39(18): 2362-2367. |
7 | 胡敏霞, 温德惠, 王立坤, 等. 高频超声与剪切波弹性成像在跟腱损伤术后评估中的应用研究 [J]. 实用医学杂志, 2022, 38(8): 1017-1021. |
8 |
SUTHASMALEE S, MOUNGMAITHONG S. Cervical shear wave elastography as a predictor of preterm delivery during 18⁃24 weeks of pregnancy [J]. J Obstet Gynaecol Res, 2019, 45(11): 2158-2168. doi:10.1111/jog.14094
doi: 10.1111/jog.14094 |
9 | 周汇恩, 陈婉明, 王梦蝶, 等. 基于临床-超声影像组学列线图模型预测孕晚期早产的价值 [J]. 实用医学杂志, 2023, 39(14): 1835-1841. |
10 |
QU Y, SUN H, CHEN J, et al. Systematic review and meta-analysis: Gray-scale ultrasound and shear wave elastography in the diagnosis of primipara pregnancy and delivery [J]. Ann Palliat Med, 2021, 10(11): 116641677-116611677. doi:10.21037/apm-21-2672
doi: 10.21037/apm-21-2672 |
11 |
FENG Q, CHAEMSAITHONG P, DUAN H, et al. Screening for spontaneous preterm birth by cervical length and shear-wave elastography in the first trimester of pregnancy [J]. Am J Obstet Gynecol, 2022, 227(3): 500.e1-500.e14. doi:10.1016/j.ajog.2022.04.014
doi: 10.1016/j.ajog.2022.04.014 |
12 |
SUN J, LI N, JIAN W, et al. Clinical application of cervical shear wave elastography in predicting the risk of preterm delivery in DCDA twin pregnancy [J]. BMC Pregnancy Childbirth, 2022, 22(1): 202. doi:10.1186/s12884-022-04526-0
doi: 10.1186/s12884-022-04526-0 |
13 | 中华医学会妇产科学分会产科学组. 早产临床防治指南(2024版) [J]. 中华妇产科杂志, 2024, 59(4): 257-269. |
14 | 唐修武, 倪观太. 宫颈机能不全的诊疗进展 [J]. 黑龙江医药, 2013, 26(4): 672-676. |
15 | 杨雅琴,李佳慧,赵莉萍,等.自发性早产预测的研究进展[J].中国生育健康杂志,2023,34(5):492-497. |
16 |
YANG X, DING Y, MEI J, et al. Second-trimester cervical shear wave elastography combined with cervical length for the prediction of spontaneous preterm birth [J]. Ultrasound Med Biol, 2022, 48(5): 820-829. doi:10.1016/j.ultrasmedbio.2022.01.003
doi: 10.1016/j.ultrasmedbio.2022.01.003 |
17 |
SHAO J, SHI G, QI Z, et al. Advancements in the application of ultrasound elastography in the cervix [J]. Ultrasound Med Biol, 2021, 47(8): 2048-2063. doi:10.1016/j.ultrasmedbio.2021.04.009
doi: 10.1016/j.ultrasmedbio.2021.04.009 |
18 |
AKBAS M, KOYUNCU F M. The Utility of Myometrial and Cervical Ultrasound Shear Wave Elastography in the Diagnosis of Ectopic Pregnancy [J]. Ultrasound Med Biol, 2020, 46(9): 2215-2221. doi:10.1016/j.ultrasmedbio.2020.04.035
doi: 10.1016/j.ultrasmedbio.2020.04.035 |
19 |
KUUSELA P, JACOBSSON B, HAGBERG H, et al. Second‐trimester transvaginal ultrasound measurement of cervical length for prediction of preterm birth: A blinded prospective multicentre diagnostic accuracy study [J]. BJOG, 2021, 128(2): 195-206. doi:10.1111/1471-0528.16519
doi: 10.1111/1471-0528.16519 |
20 | 丁苗苗, 栗河莉, 郭瑞霞. 经会阴超声测量宫颈长度及宫颈前角对孕期经阴道宫颈环扎术后早产的预测价值 [J]. 郑州大学学报(医学版), 2024, 59(1): 1-4. |
21 | 杜柳, 古裕均, 吴利红,等. E-Cervix弹性成像评估不同分娩史孕妇妊娠期宫颈组织差异的研究 [J]. 影像诊断与介入放射学, 2024, 33(1): 63-70. |
22 |
MYERS K M, FELTOVICH H, MAZZA E, et al. The mechanical role of the cervix in pregnancy [J]. J Biomech, 2015, 48(9): 1511-1523. doi:10.1016/j.jbiomech.2015.02.065
doi: 10.1016/j.jbiomech.2015.02.065 |
23 | 左喜芳, 杜雨峰, 杨静, 等. 双胎孕妇妊娠中晚期的子宫颈长度对早产的预测价值 [J]. 中华妇产科杂志, 2019, 54(5): 318-323. |
24 |
PACHULIIA O V, KHALENKO V V, SHENGELIIA M O, et al. Biomechanisms of cervical remodeling and current approaches to maturity assessment[J]. J Obstet Gynaecol, 2023, 72(1): 81-95. doi:10.17816/jowd114934
doi: 10.17816/jowd114934 |
25 | 李雪, 张弘. 宫颈机能不全环扎与早产 [J]. 中国实用妇科与产科杂志, 2018, 34(2): 146-150. |
26 | 柯宇莉, 魏玉梅. 超声监测宫颈长度预测单胎妊娠早产的研究进展 [J]. 现代妇产科进展, 2023, 32(8): 630-632. |
